1.5mm Fusion Splice Protection Sleeves

Brand Name : XXR

Model Number : OFSS-40M

Certification : SGS

Place of Origin : China

MOQ : 50,000 pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 200K pcs/day

Delivery Time : 5-7 days

Packaging Details : 100 pcs/pack

Name : fusion splice protection sleeve

Needle diameter : 0.5MM

Fusion tube : EVA

Length : 40MM

OD Contracted : 1.5MM

Color : transparent

Packing : 100pcs

Steel needle : polished and burr free

Contact Now

Fiber Optic Fusion SPlice Sleeve Clear With OD1.5mm L=40mm

Definition: Optical fiber heat-shrinkable tube, commonly known as optical fiber connector, scientific name: optical fiber connection heat-shrinkable protection tube, or optical fiber fusion protection heat-shrinkable tube, is an optical fiber connection protection element.

the scope of application of small and micro fiber heat shrinkable tube:

It is mainly used in optical devices, optical instruments, special optical equipment and other fields that need optical fiber transmission data. It can reliably solve the problem of connection through hot melt.

Composition and characteristics of optical fiber heat shrinkable tube:

Composition :

(1) heat shrinkable tube (2) hot melt tube (3) stainless steel needle

Features :

(1) low shrinkage temperature, hot melt speed is very fast

(2) the steel needle makes the high mechanical strength after fusion greatly improved, to provide strength and protection for the fiber joint, sealing structure so that the connection has good temperature resistance and humidity performance

(3) the attenuation is almost zero, the signal is more stable, the transmission speed is faster

(4) simple operation, reduce the risk of damage to the optical fiber during installation

Application: optical communication field.

Suitable for: Optical instrument and equipement

Specifications:

Part No.

Spec. (mm)

Steel rod

dia.(mm)

Outer tube

L.(mm)

OD after shrinking

(mm)

Inner tube

L.(mm)

(mm)

OFSS-40M

0.5 * 40

0.5

1.4

≥1.2

OFSS-45M

0.5 * 45

0.5

1.4

≥1.2

Product Tags:

transparent Fusion Splice Protection Sleeves

SGS heat shrinkable tube 40mm

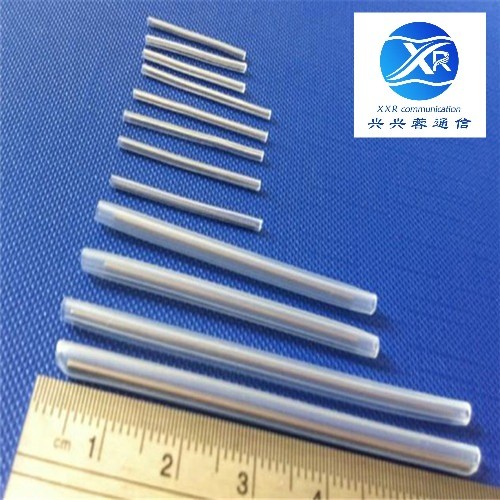

1.5mm Fusion Splice Protection Sleeves Images
