Round Bare Fiber Protection Tube 5mm Fiber Optic Cable Protection Tube

Brand Name : XXR

Model Number : BFPT

Certification : SGS

Place of Origin : China

MOQ : 1 roll

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000 Meters per Week

Delivery Time : 5-7 days

Packaging Details : 100 / 200 meters/ roll

Material : Cross-linked polyolefin

Spec. : 3*5 MM

Shape : Round/Rectangular/Oval

Operating temperature : -55 ℃ ~ +100 ℃

Min.Shrink temperature : 120 ℃

Atmospheric pressure : 70 ~ 106 Kpa

Color : Clear

Suitable for : optical fiber splice closure

Contact Now

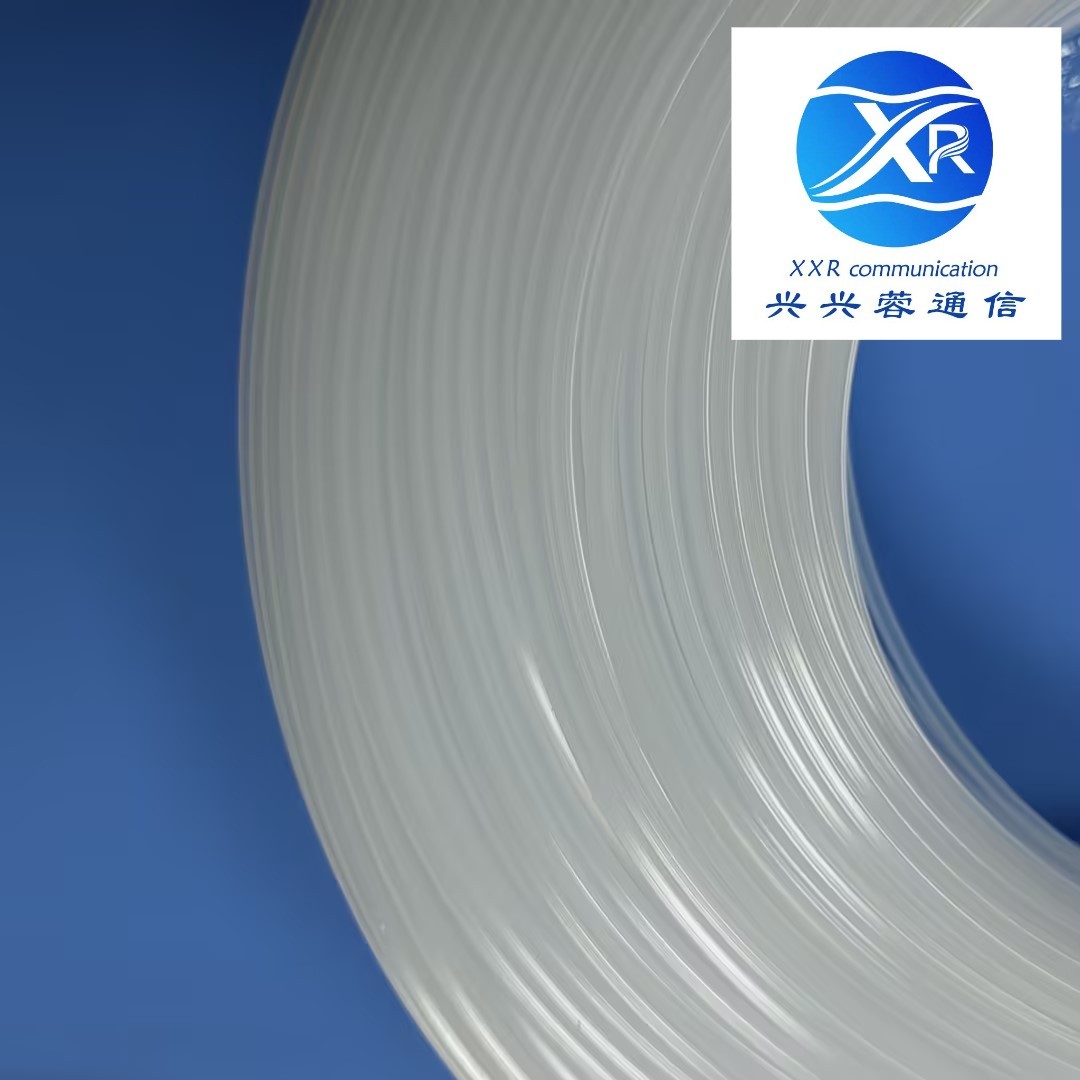

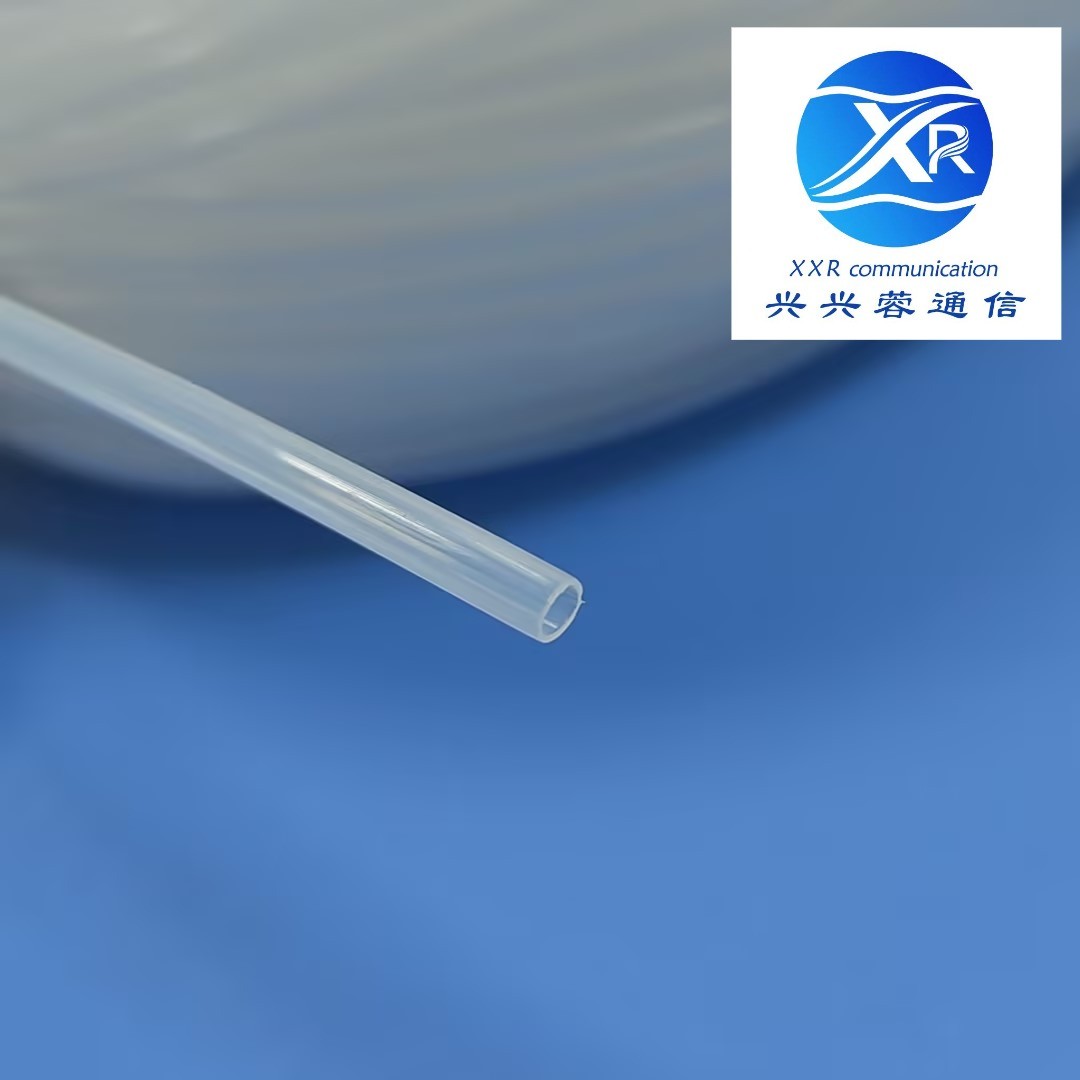

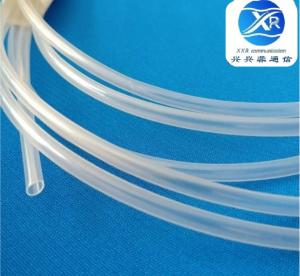

Bare Fiber Protection Tube , 5mm Fiber Optic Cable Protection Tube

Bare fiber protection tube, designed to protect the fiber stripped from the housing, mainly used in ODF, fiber distribution box, fiber splice box, fiber cross-connect cabinet.

Outer diameter: 5MM
Range: ODF fiber or bare fiber
Opaque casing with strong protection
Strong toughness, easy operation, reducing the risk of fiber damage during installation;
High working temperature, wide range of use
Various shapes, suitable for all kinds of bare fiber
Working temperature range
Not a flame retardant.

Feature: clear color, not easy to break, with excellent performance.

Technical data:

Properties	Test method	Value
Tensile strength (MPa)	ASTM D 2671	≥10.4
Elongation at break (%)	ASTM D 2671	≥200
Withstand voltage (300v)	UL 224	1500V,1MIN
Dielectric strength (KV/MM)	ASTM D 149	≥15
Volume resistivity (Ω.cm)	IEC 60093	≥10¹⁴
Length change ratio (%)	ASTM D 2671	±5%

Round/Rectangular/Oval Shape

Round Bare Fiber Protection Tube 5mm Fiber Optic Cable Protection Tube
